Camera Products
Product List
- Dome Type
| Model | Image Sensor | Lens | IR LED | Image | Download |
|---|---|---|---|---|---|
HC-ID421FL |
2.1Mega Pixel 1/2.9" Progressive Scan |
3.6mm Fixed |
24 |
 |
|
HC-IG421FL |
2.1Mega Pixel 1/2.9" Progressive Scan |
3.6mm Fixed |
30 |
 |
|
HC-IV421VL |
2.1Mega Pixel 1/2.9" Progressive Scan |
2.8 ~ 12mm |
36 |
 |
- Bullet Type
| Model | Image Sensor | Lens | IR LED | Image | Download |
|---|---|---|---|---|---|
HC-IML421FL |
2.1Mega Pixel 1/2.9" Progressive Scan |
3.6mm Fixed |
36 |
 |
|
HC-IL421FL |
2.1Mega Pixel 1/2.9" Progressive Scan |
2.8 ~ 12mm |
35 |
 |
|
HC-IH421VL |
2.1Mega Pixel 1/2.9" Progressive Scan |
2.8 ~ 12mm |
62 |
 |
KC & HC IP Module
◈ HC Module
Due to its tiny size (42 x 42 mm), FOCUS H&S' IP Camera Module can be installed inside most of the analog camera from small box camera up to speed dome, just switching into Megapixel IP Camera.
- HC-Module which adopts Hisilicon solution
- 30 fps @ D1 & 720P & 1080P
- ONViF & RTSP Protocol
- Wi-Fi Transmission through USB Wi-Fi Module
- Network-failed recording by USB Media
- ezP2P™ Cloud Service
- Remote monitoring through CMS & Smart Phone
- PUSH Video Call to iPhone & iPad
- 64Ch SMS(NVR Software) included
| MODEL | HC MODULE ( 2.1 MP ) |
|---|---|
Solution |
Hi silicon |
Resolution |
2.1 Megapixel ( 1080p) |
Trans mission |
30 fps @ 1080p |
Dimension ( WxH) |
42 x 42 (mm) |

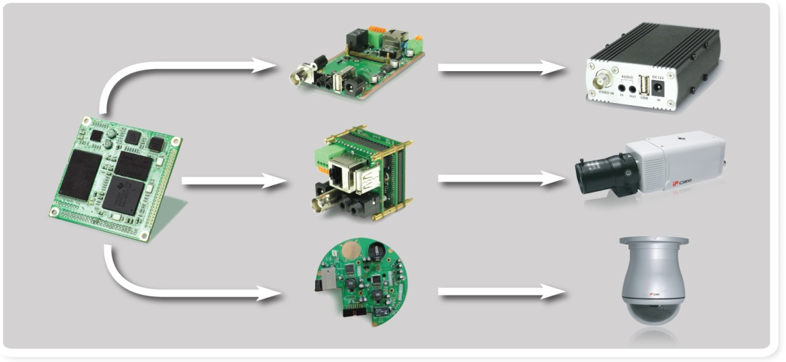

◈ Implementation Example
Here are few implementation examples. FOCUS H&S is ready to provide full technical support.

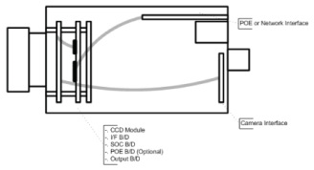

[BOX Camera]

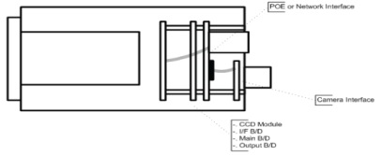

[Zoom Camera]
[Dome Camera]
[Speed Dome Camera]
Support Features
ezP2P™ Cloud Service
ezP2P™ Cloud Service is a cloud-based video management system without any complicated network setting. You can preview the thumbnail image of each registered device and enjoy instant live monitoring by log-in at ezP2PTM Cloud Server(www.ezp2p.com) with your e-mail address.
 |
ezLink™ with Mac Address
The ezsiest say to connect to the DVR just by Mac Address
 |
Typical PUSH Function
2 PUSH Functions below provides you with efficient monitoring and control of your DVR. It allows you to be free from constant attention to the event that may or may not happen.
PUSH Video Call
to iPhone & Android Phone
 |
 |
 |
PUSH Network
Connection under Sensor Event
 |
|
 |
